Product Catalog
Our Products
Fully integrated automation systems — self-developed software OS, flexible vibratory feeders, and automatic material silos in one complete solution. Software licensed free of charge, forever. Custom solutions and free trial testing available.

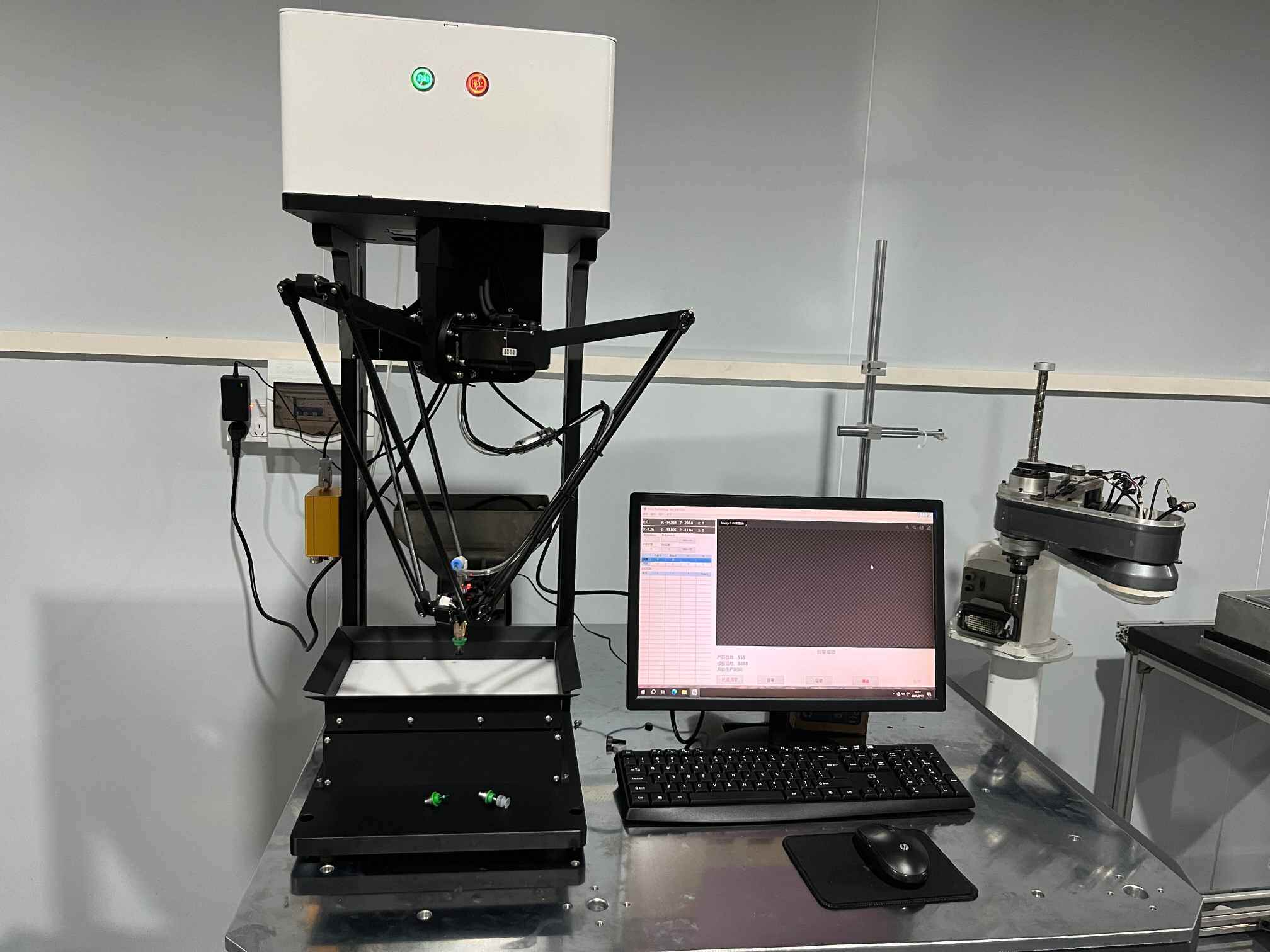

Flexible White Spider 300 Model
Compact flexible feeder system ideal for small to medium production lines. Perfect for laboratories and R&D environments. Features square white light source for optimal component visibility.
- Vibratory Feeder Size: 180 × 125 mm
- Top Speed: 0.6-0.8 sec/pc
- Repeatability: ±0.1 mm
- Tray Loading Range: 200 × 150 mm
- Voltage: AC220V | Power: 500W
- Resolution: 3072 × 2048 pixels

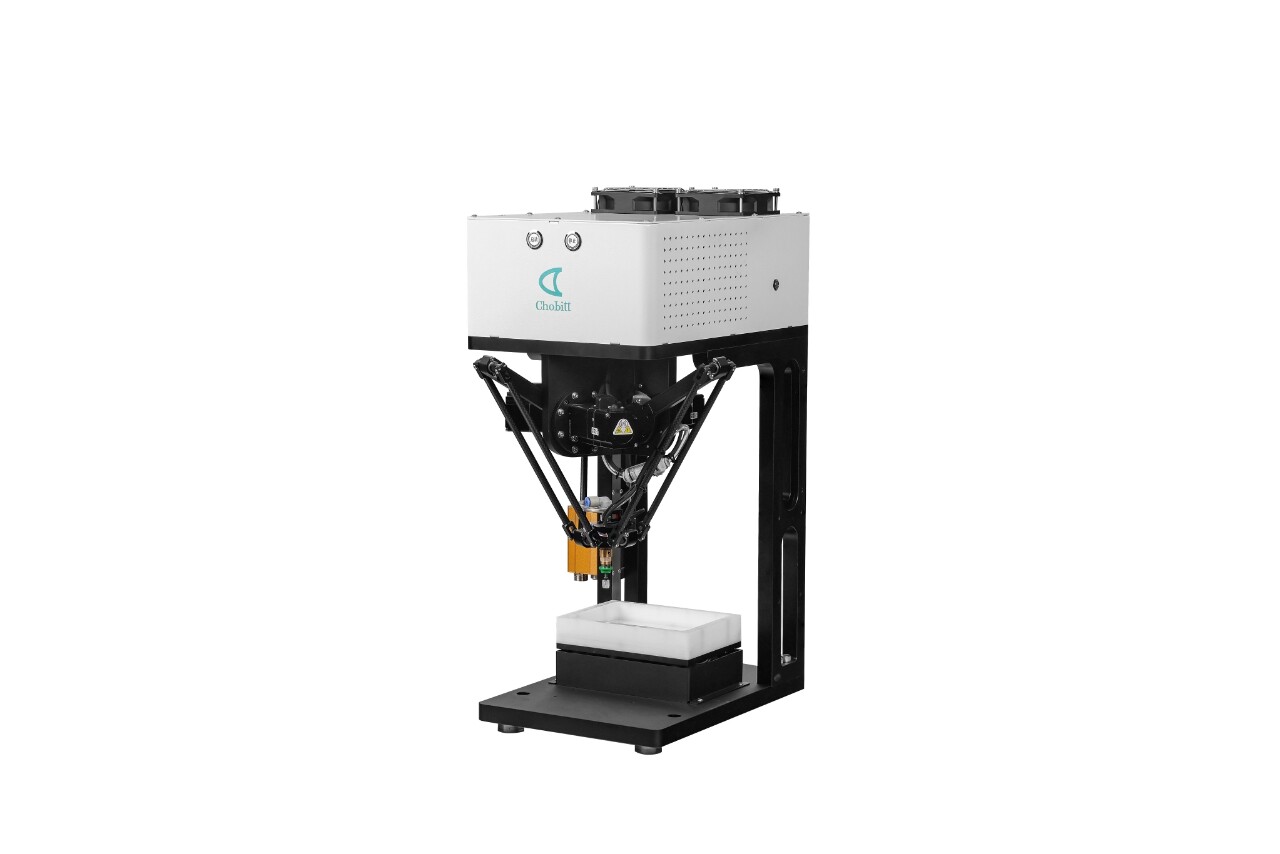

Flexible White Spider 550 Model
Mid-size flexible feeding station with parallel spider design. Balanced performance for medium-volume production lines. Handles high-intensity & high-frequency repetitive motions.
- Vibratory Feeder Size: 275 × 190 mm
- Top Speed: 0.6-0.8 sec/pc
- Repeatability: ±0.1 mm
- Tray Loading Range: 300 × 200 mm
- Voltage: AC220V | Power: 500W
- Functions: Tray loading, sorting, taping, dynamic pick-up

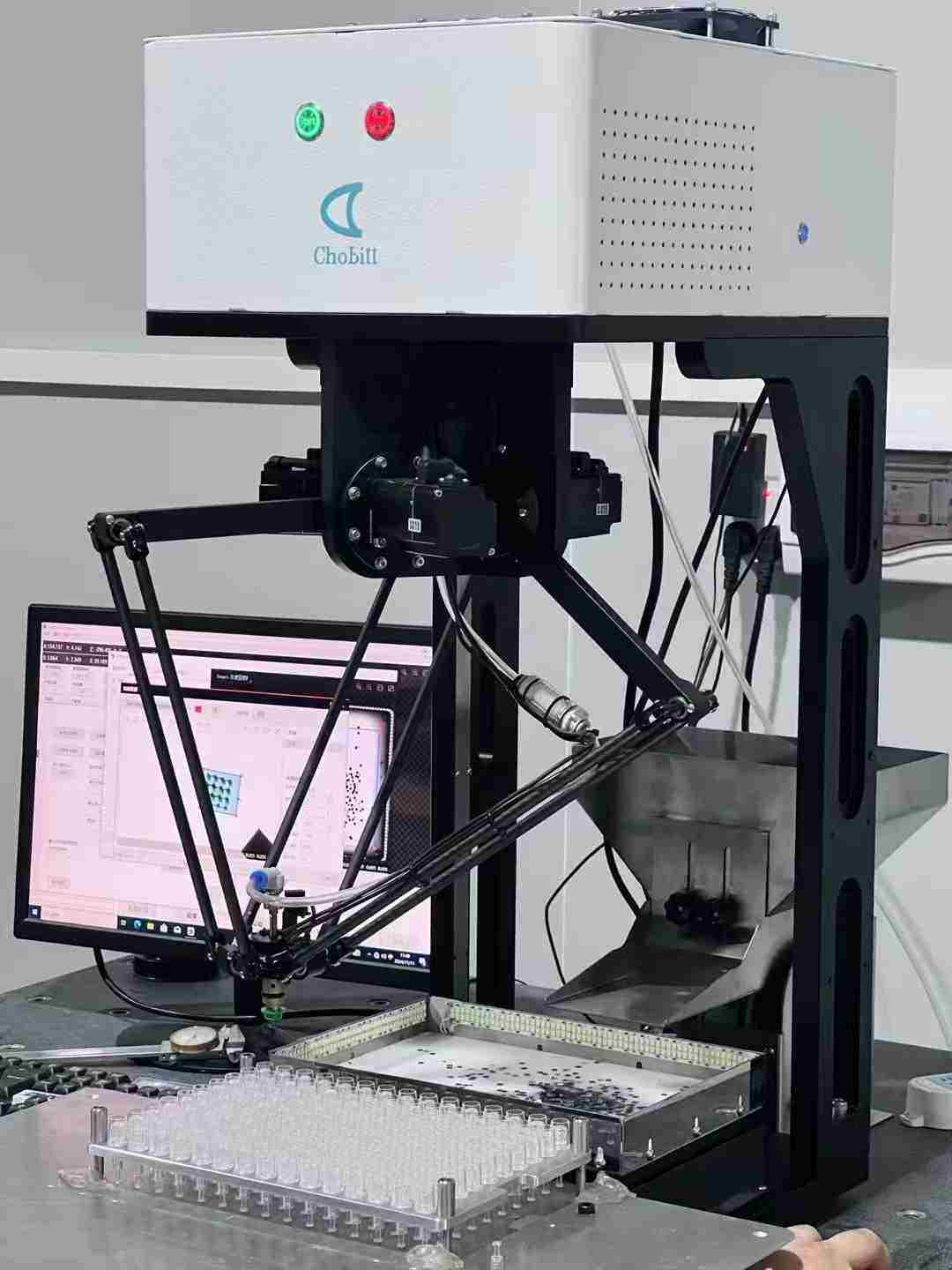

Flexible White Spider 650 Model
High-speed flexible feeding station with parallel spider design. Satisfies demands for top speed and compact footprint. Easily handles high-intensity & high-frequency repetitive motions.
- Vibratory Feeder Size: 275 × 190 mm
- Top Speed: 0.6-0.8 sec/pc
- Repeatability: ±0.1 mm
- Tray Loading Range: 350 × 270 mm
- Voltage: AC220V | Power: 500W
- Functions: Tray loading, sorting, taping, dynamic pick-up
Flexible Black Spider 300 Model
Compact black-series flexible feeder for small production lines. Heavy-duty build with anti-damage gentle handling. Customizable parameters for diverse component types.
- Vibratory Feeder Size: 200 × 150 mm
- Top Speed: 0.6-0.8 sec/pc
- Repeatability: ±0.1 mm
- Tray Loading Range: 200 × 120 mm
- Heavy-duty industrial build
- Anti-damage gentle handling
- Custom configurable parameters

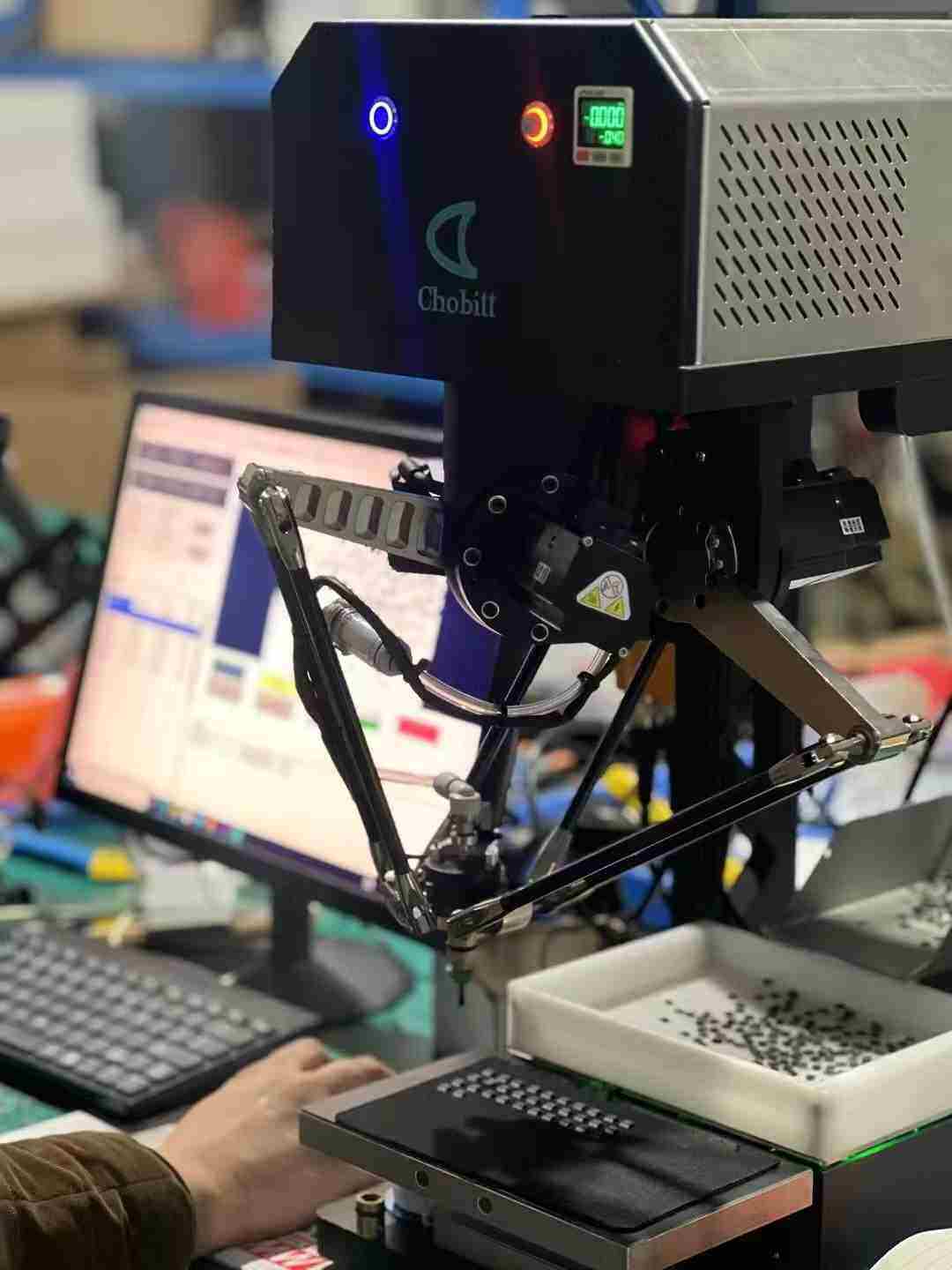

Flexible Black Spider 550 Model
Heavy-duty flexible feeding solution for demanding industrial applications. Handles larger and heavier components with ease. Application matching: Flexible Feeders, Factory Production Lines, Flexible Taping Machines.
- Vibratory Feeder Size: 310 × 230 mm
- Top Speed: 0.6-0.8 sec/pc
- Repeatability: ±0.1 mm
- Tray Loading Range: 300 × 200 mm
- Voltage: AC220V | Power: 500W
- Heavy-duty industrial build
- Anti-damage gentle handling
- High payload capacity
- High precision & operating speed

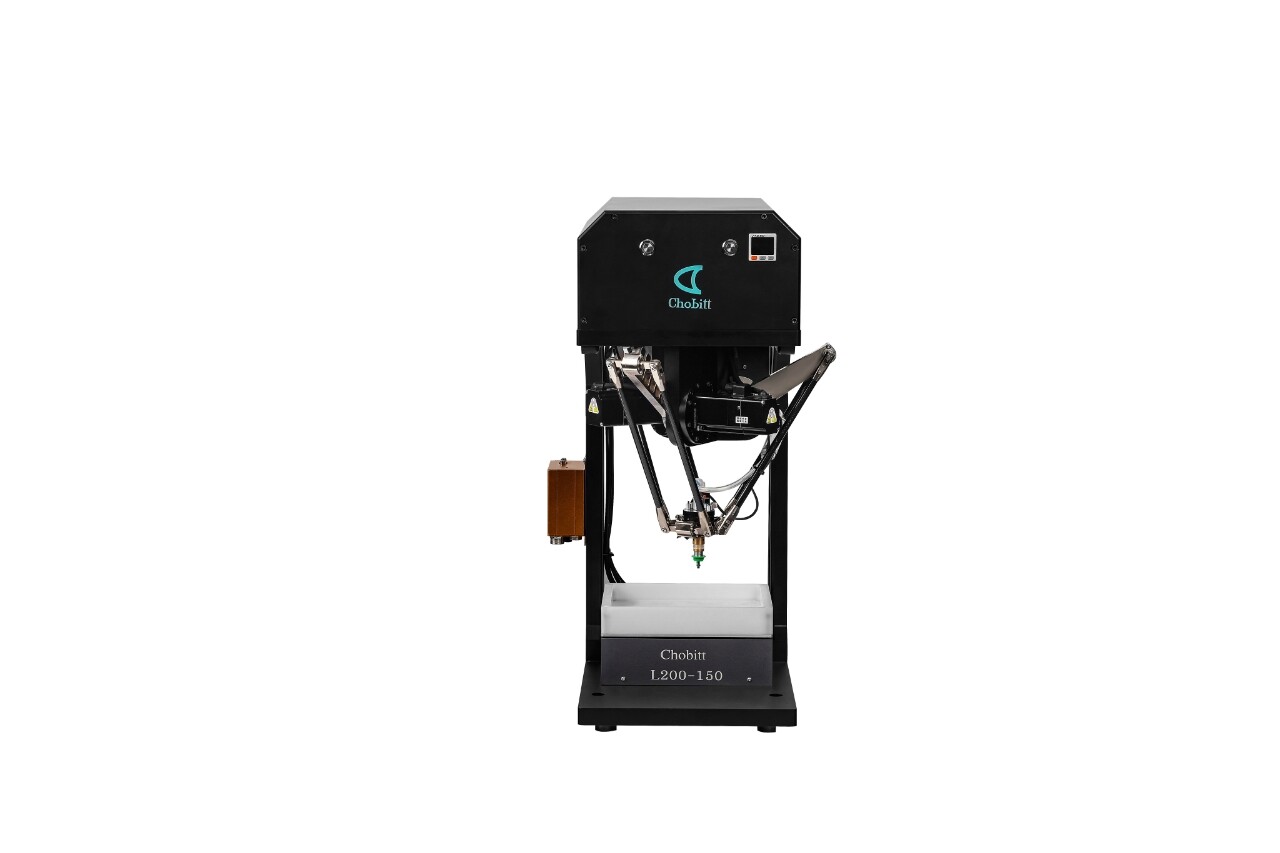

Flexible Black Spider 650 Model
Large-format black-series flexible feeder for high-volume industrial production. Maximum payload capacity with superior wear resistance and precision.
- Vibratory Feeder Size: 310 × 230 mm
- Top Speed: 0.6-0.8 sec/pc
- Repeatability: ±0.1 mm
- Tray Loading Range: 390 × 240 mm
- Voltage: AC220V | Power: 500W
- Heavy-duty industrial build
- Maximum payload capacity
- Superior wear resistance
- High precision & operating speed
- Custom tray layout available
Flexible Feeder 750 Model (Custom)
Custom-built flexible feeder for specialized production requirements. Tray size customized based on customer product fixtures and pallets. Contact our engineering team for specifications.
- Vibratory Feeder Size: 275 × 190 mm
- Top Speed: 0.6-0.8 sec/pc
- Repeatability: ±0.1 mm
- Tray Loading Range: 450 × 350 mm
- Voltage: AC220V | Power: 500W
- Custom tray per customer fixture/pallet
- Tailored to production requirements
- Full engineering support
- Permanent free software license

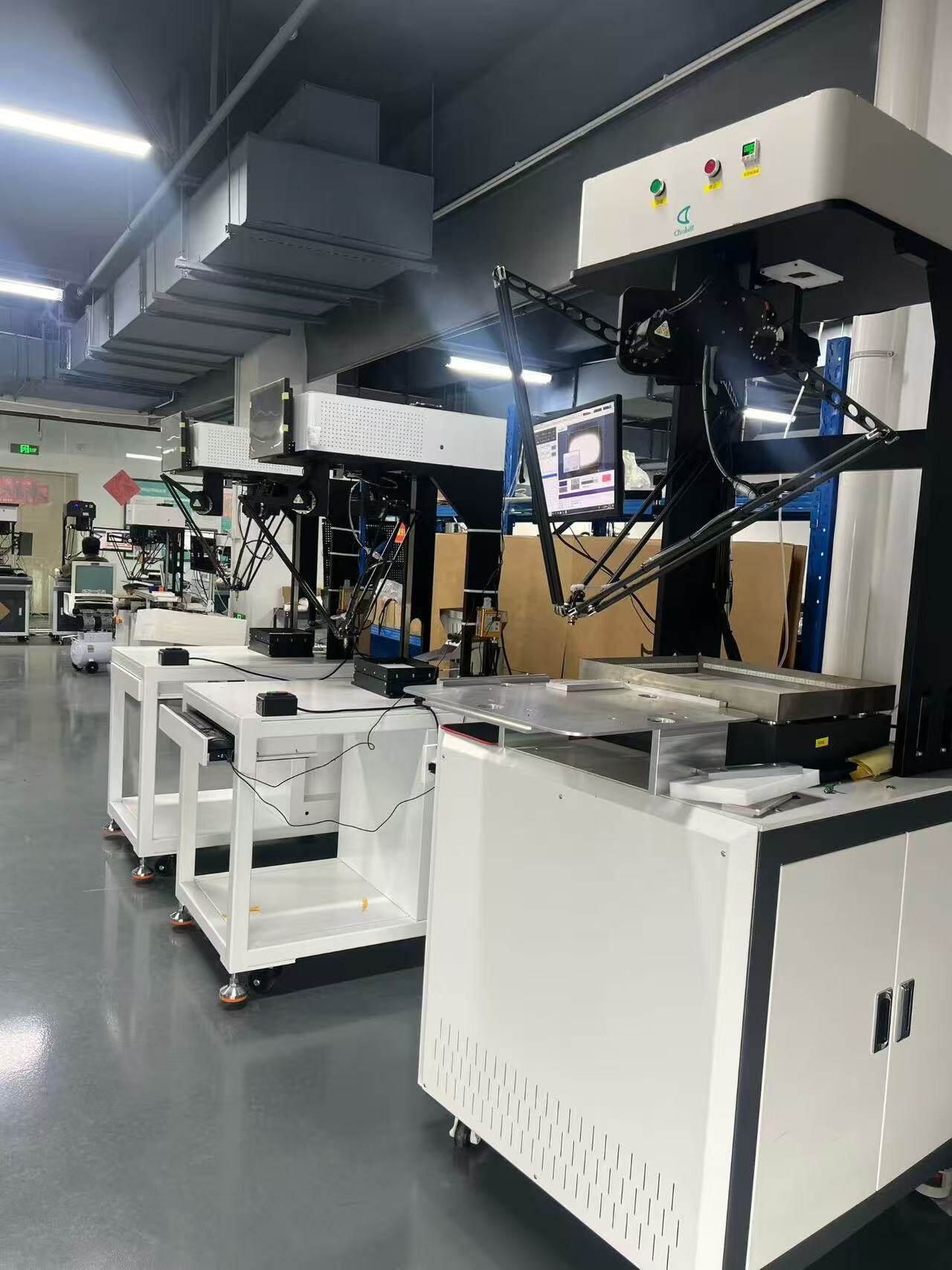

Flexible Feeder 800 Model (Custom)
Large-format custom flexible feeder for oversized components and specialized tray layouts. Tray size 500 × 400 mm, customized based on customer product fixtures and pallets.
- Vibratory Feeder Size: 500 × 400 mm
- Top Speed: 0.6-0.8 sec/pc
- Repeatability: ±0.1 mm
- Tray Loading Range: 500 × 400 mm
- Voltage: AC220V | Power: 500W
- Custom tray per customer fixture/pallet
- Large-format component handling
- Tailored to production requirements
- Full engineering support
- Permanent free software license
